(Note: Click thumbnails to enlarge pictures.)

Accessory Drive Brackets

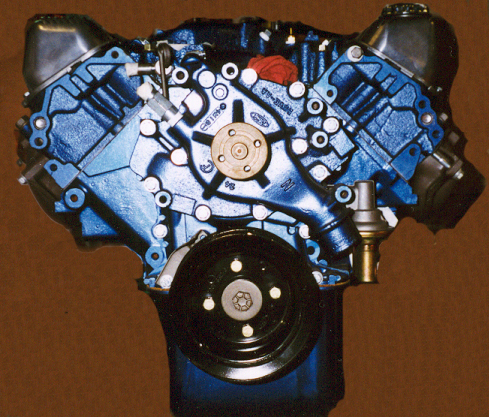

This view shows the front of the 429 engine prior to installation of any bracketry.

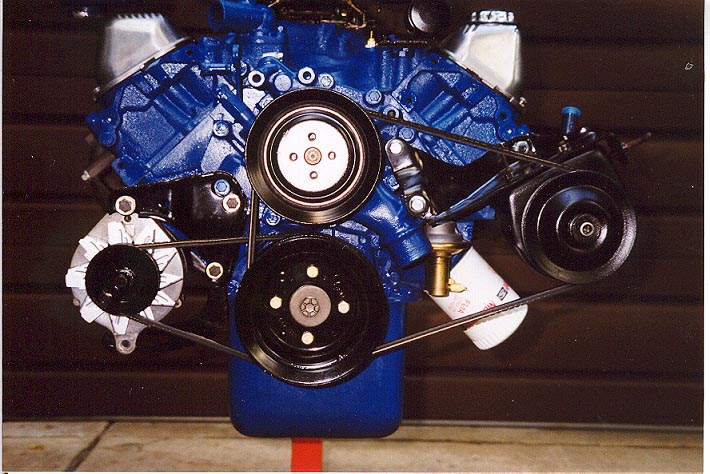

This is a typical 429 CJ accessory drive with Alternator and Power Steering installed. Note the belt routing

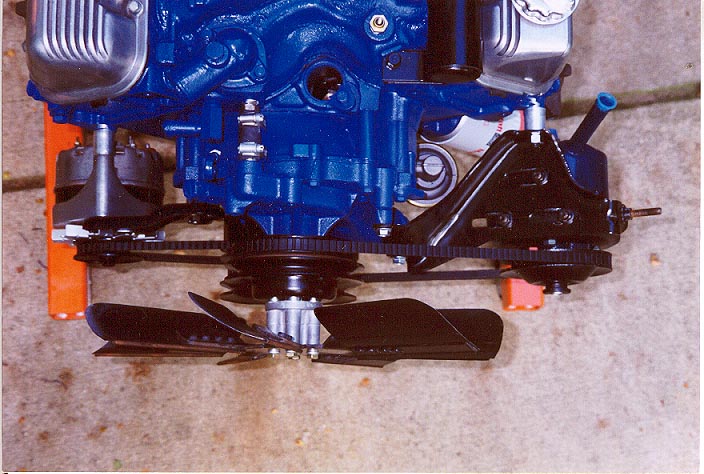

Top view showing spacers, brackets and accessories



Alternator Brackets

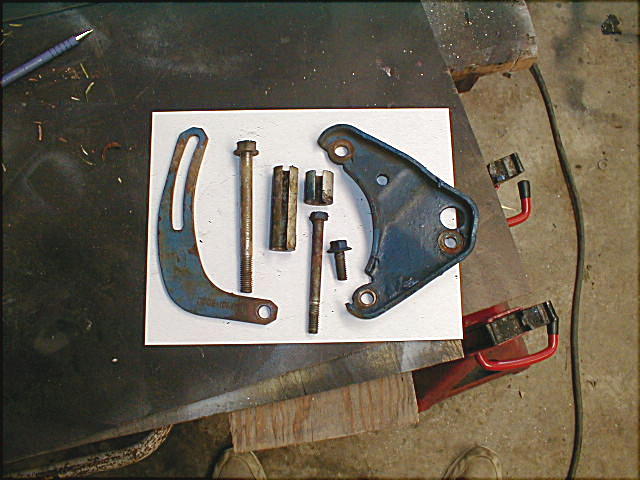

P5030007 Alt Brackets.jpg (64076 bytes)

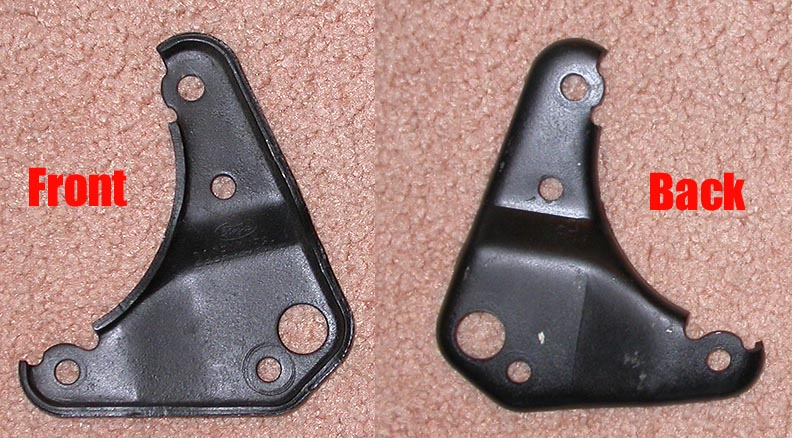

The alternator bracketry consisted of a triangular support - D0SE-10156-A (right) and an adjustment bracket D0OE-10145-B (left). Detail pix of the D0SE-10156-A are shown below;

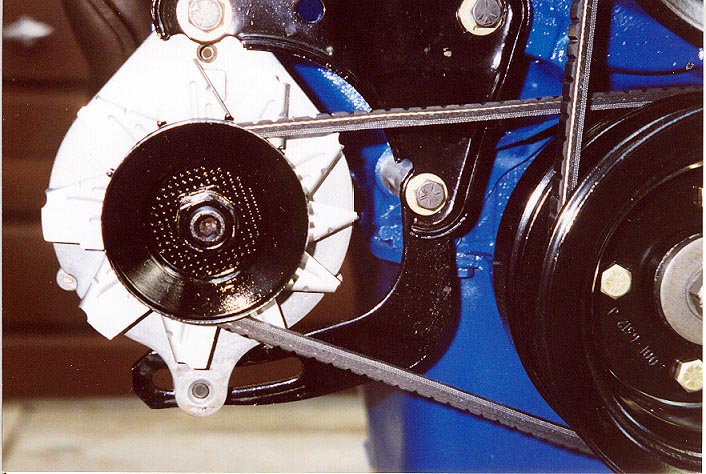

This shot is an installed view of the alternator and associated brackets.

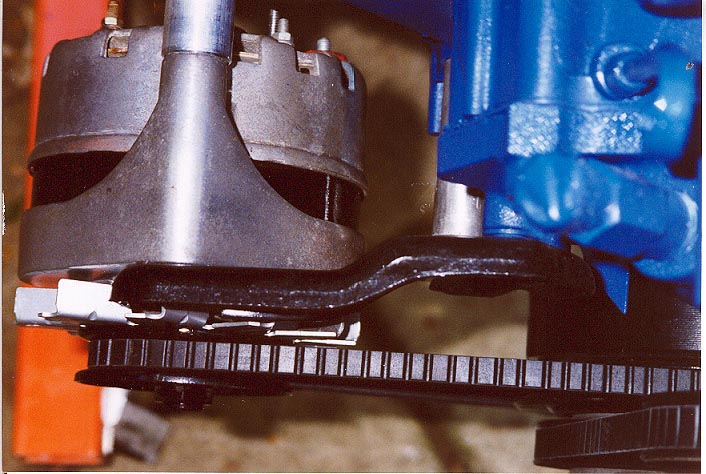

Top view of alternator and brackets installed.


Adjustment Brackets

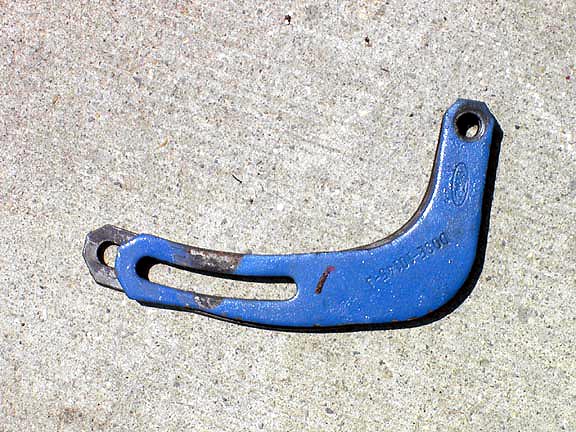

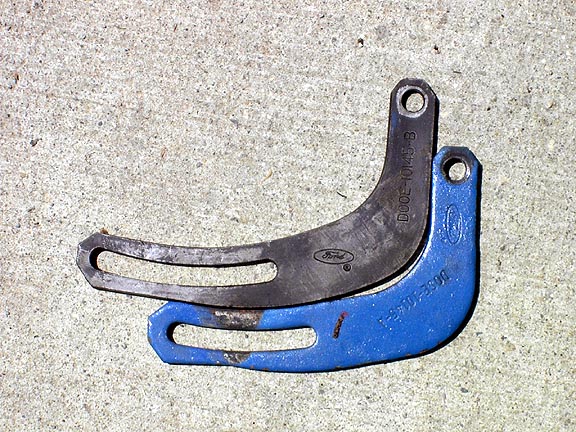

The difference between the CJ bracket (black - D0OE-10145-B) and the standard 429/460 bracket (blue - D0SE-10145-A) is that the CJ bracket has a longer adjustment slot than the standard and is a little bit beefier.  The thickness is the same.



Smog System Brackets
Also see this link: Smog Page




Smog Pump/Alternator Bracket

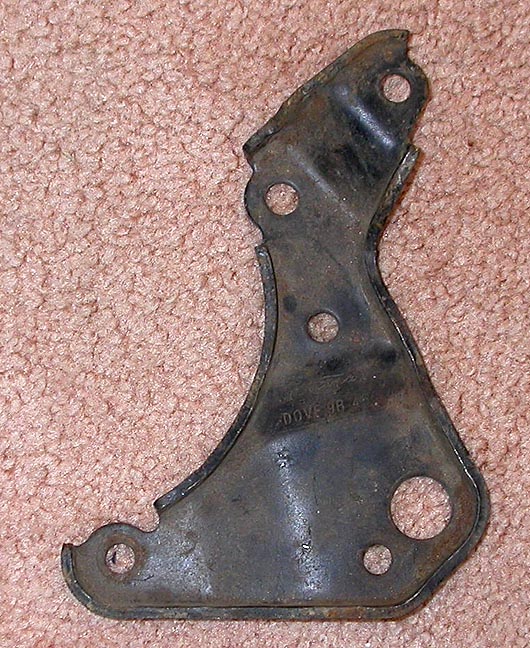

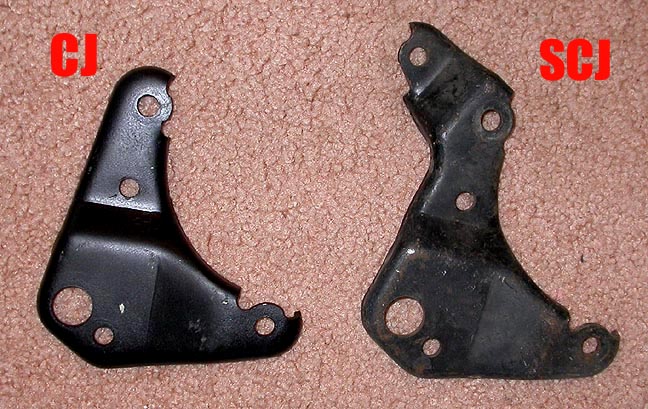

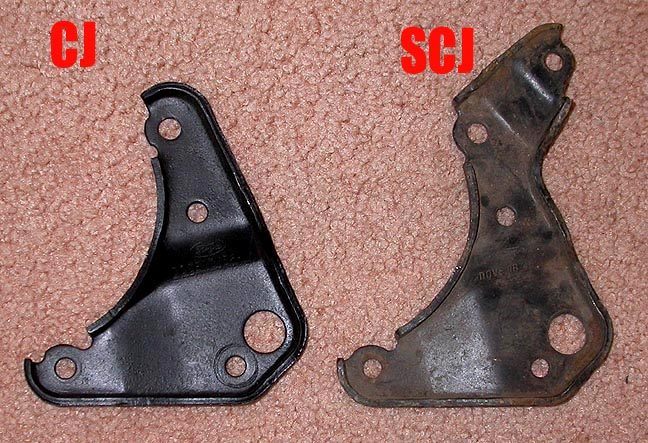

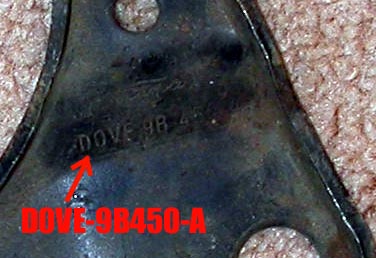

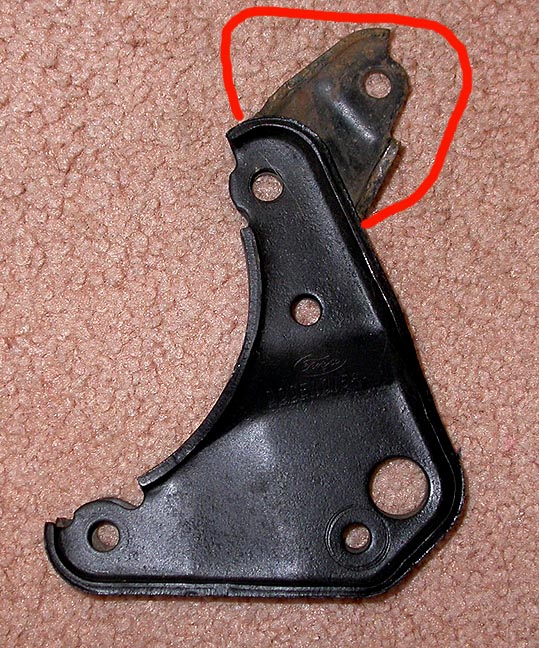

The 429 SCJ uses a modified 429 CJ alternator bracket to mount the Smog pump to the engine. As can be seen in the photos above, Ford added an additional mounting tab to the CJ bracket to serve as the lower mount for the Smog Pump. This mounting tab can be clearly seen in the photo at center right with the CJ bracket overlaid on top of the SCJ bracket. The SCJ bracket is part number D0VE-9B450-A as shown in the photo at right and bracket alone below;.

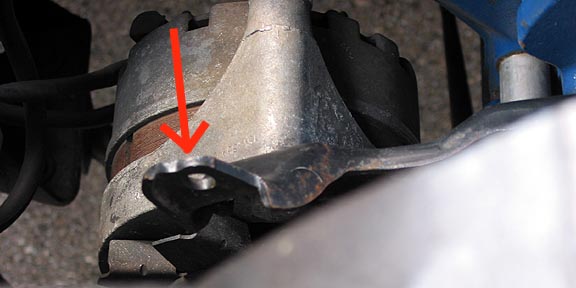

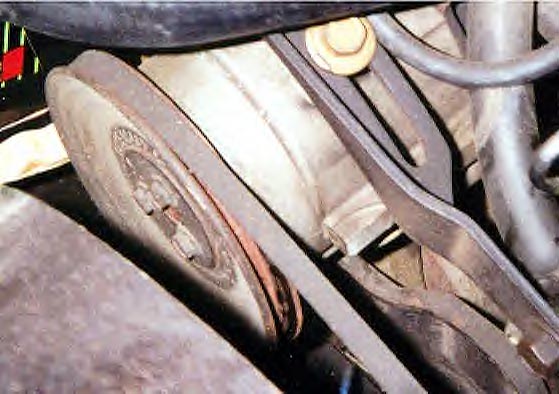

Below is a view of this bracket installed (without smog pump) showing the eyelet that provided the lower mounting point for the smog pump.




smog452bracket.jpg (15360 bytes)   452bracket2.jpg (14684 bytes)   UpperSmog8.jpg (16184 bytes)   p10fredsmog.jpg (45441 bytes)

Smog Pump Adjustment Bracket

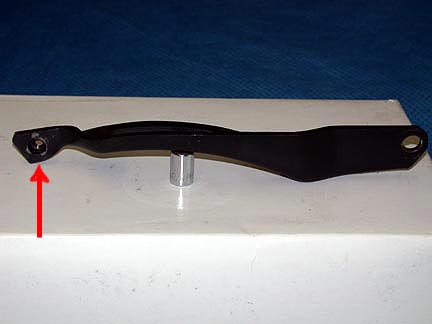

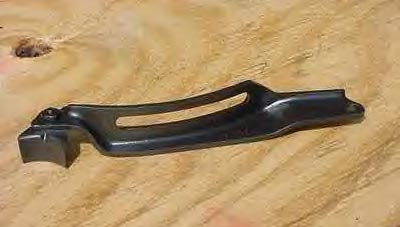

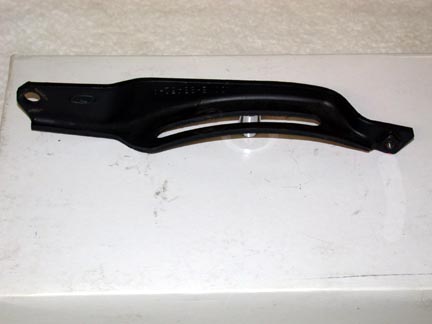

This is the 429 SCJ smog pump adjustment bracket (Part # D0VE- 9B452-A). A bolt through the slot allows the smog pump to be adjusted to tension the drive belt.




Assembled View

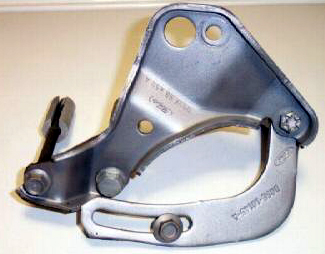

This is an overview of how the bracketry assembles together for the 429 SCJ smog system.




Power Steering Brackets

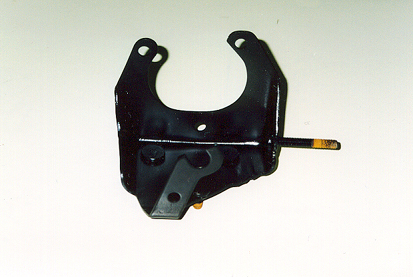

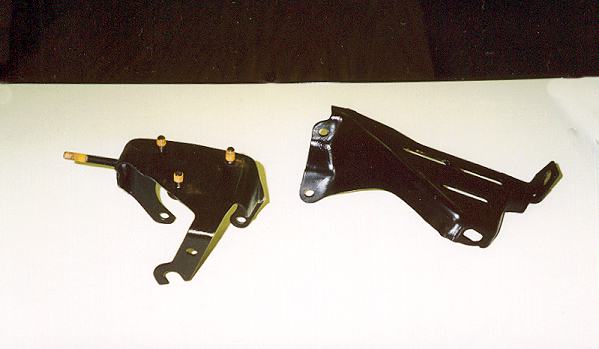

This is the power steering pump support bracket (D1AZ-3A732-A). It bolts to the front of P/S pump via the three holes in the "C" shaped portion.


The support bracket shown at left attaches to the adjustment bracket (right) that bolts to the engine.

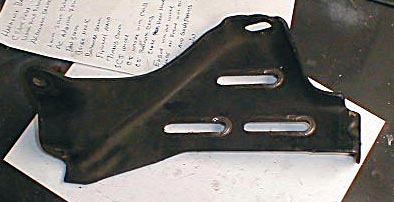

Detailed view of the P/S adjustment bracket  (D0AZ-3C511-F).

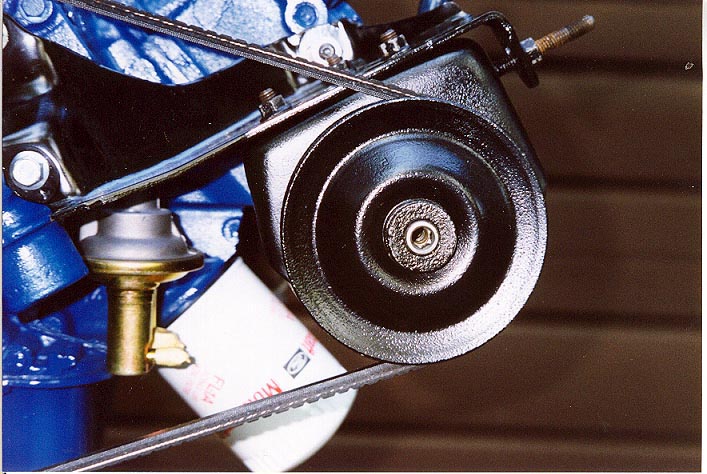

Installed shot of Power Steering bracketry (front view).

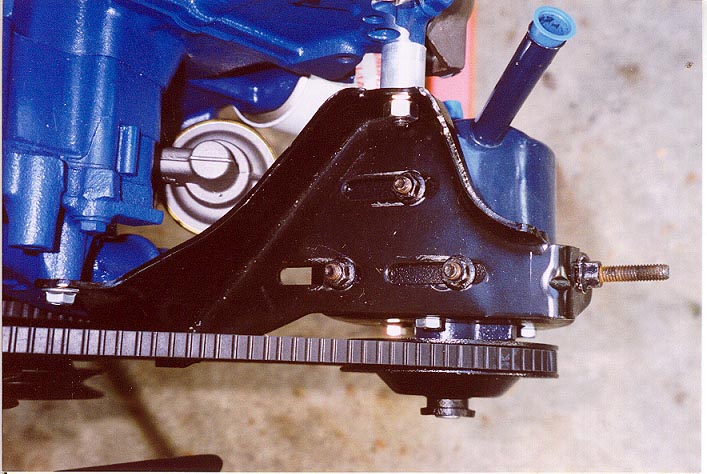

Top view of P/S bracketry. Belt tension is adjusted by loosening the three nuts shown and cranking the nut on the long fastener at the right of the photo.

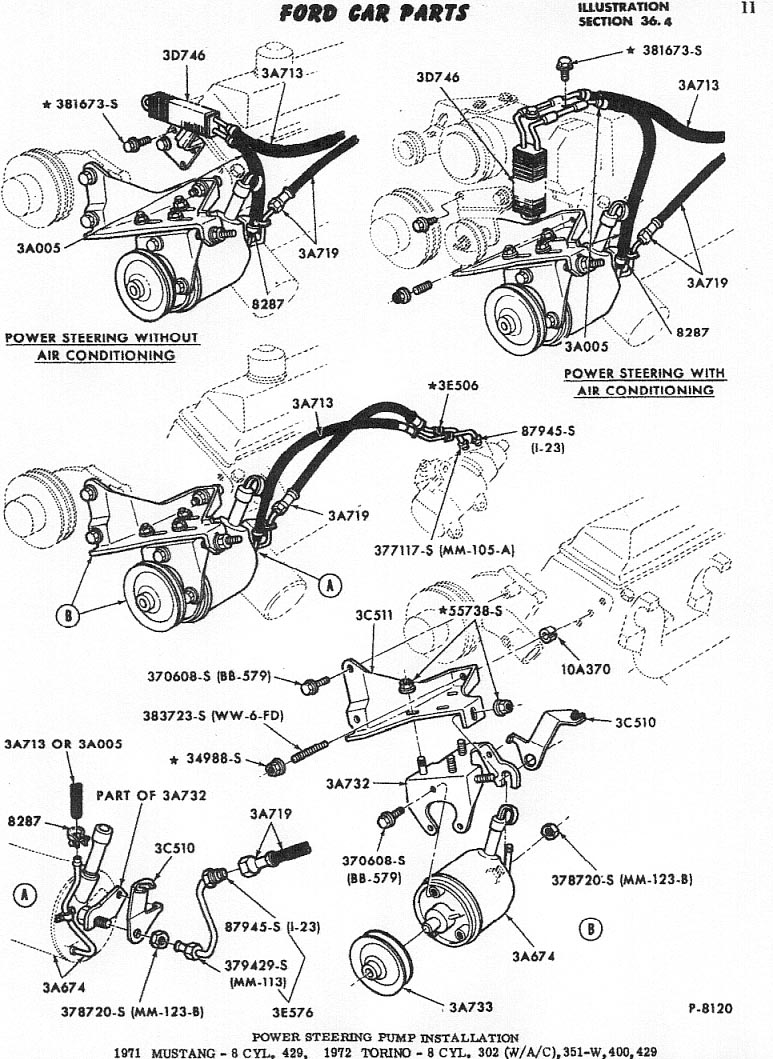

Detailed Power Steering Bracketry Installation Diagram

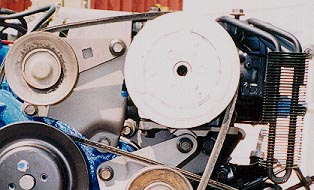

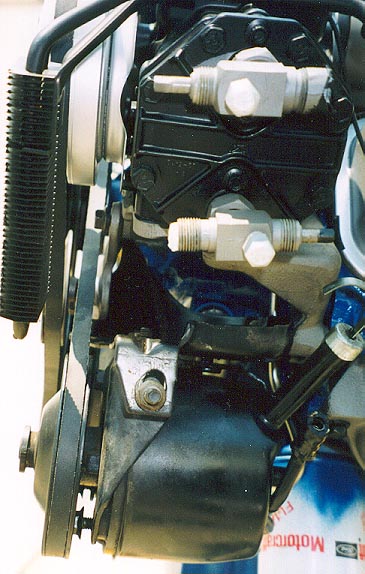

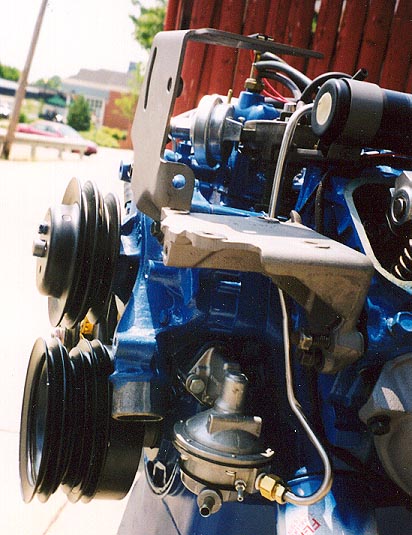

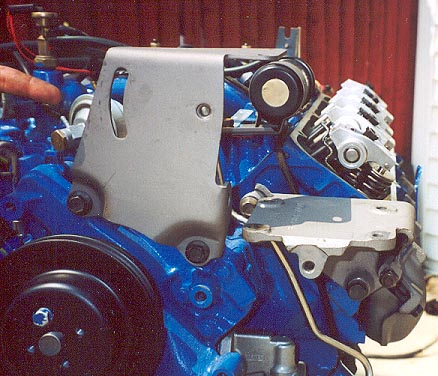

A/C Brackets

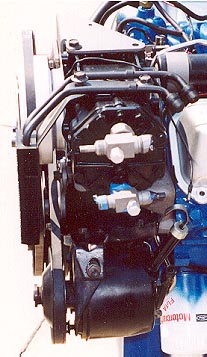

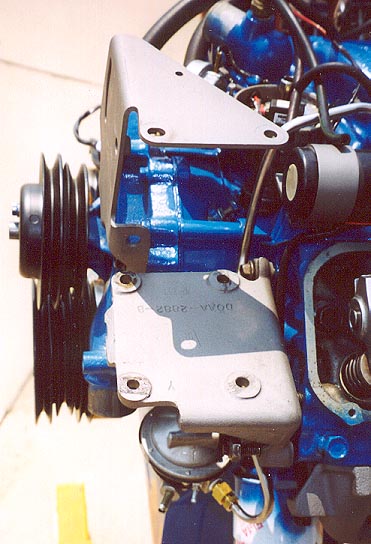

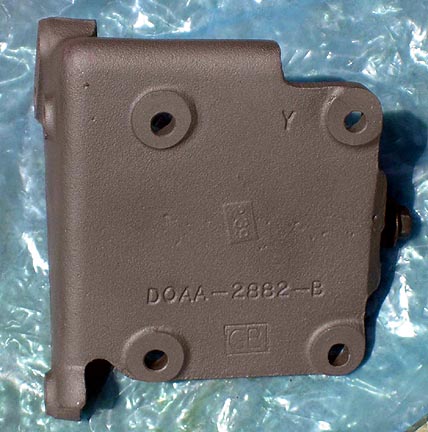

Lower A/C Compressor mounting Bracket - Part number D0AA-2882-B

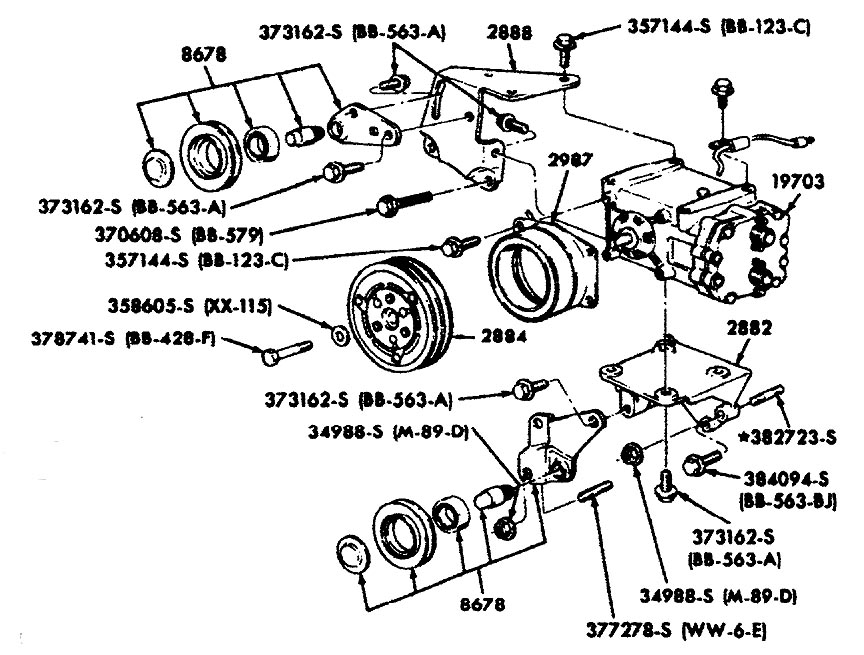

Detailed A/C Compressor Bracketry Installation Diagram



Dan Davis's 429 CJ Cougar
